JIS B 2220 10k Flanges


Hindustan Pipes & Fittings is a dynamic group, which was established over a decade ago to cater to growing demands of JIS B 2220 10k Flanges standards in Weld Neck Flanges, Blind Flanges, Threaded Flanges, Loose or Lap Joint Flanges in all materials like Stainless Steel , Carbon Steel & High Nickel Alloys. We Manufacture, Export and Supply Flanges which meets with national and international quality standards and producing base which owns equipments conforming to international technical level and is well equipped with a whole set of advanced plasma refining equipments.
We export our high quality JIS B 2220 10k Flanges to Kuwait, Egypt and Qatar.

specifications of JIS B 2220 10k Flanges

Size : DN15 - DN2000
Standard: JIS B 2220
Type: Slip On Flanges, Slip On Hub Flanges, Blind Flanges
Process: Forged
Pressure grade: 2K, 5K,10K,16K,20K,30K,40K

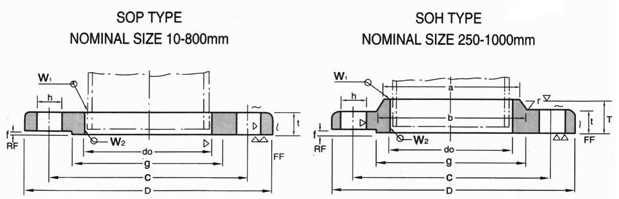

Dimensions of JIS B 2220 10k Flanges



Nominal Outside Inside Outside Sectional Dimensions of Flange Bolt Hole Nor Approx.
Dia. of Dia. of Dia.of Dia. of t T Dia. of Hub r Dia. of Dia. of Bolt. No. Hole Bolt Weight
Flange Steel Flange Flange a b Face Rai-
sed Face
Circle of Bolt Dia. Size (kg)
  Pipe do D f g Dia Holes h   SOP BL SOH
10 17.3 17.8 90.0 12 - - - - 1 46 65 4 15 M12 0.51 0.53 -
15 21.7 22.2 95.0 12 - - - - 1 51 70 4 15 M12 0.56 0.60 -
20 27.2 27.7 100.0 14 - - - - 1 56 75 4 15 M12 0.72 0.79 -
25 34.0 34.5 125.0 14 - - - - 1 67 90 4 19 M16 1.12 1.22 -
32 42.7 43.2 135.0 16 - - - - 2 76 100 4 19 M16 1.47 1.66 -
40 48.6 49.1 140.0 16 - - - - 2 81 105 4 19 M16 1.55 1.79 -
50 60.5 61.1 155.0 16 - - - - 2 96 120 4 19 M16 1.86 2.23 -
65 76.3 77.1 175.0 18 - - - - 2 116 140 4 19 M16 2.58 3.24 -
80 89.1 90.0 185.0 18 - - - - 2 126 150 8 19 M16 2.58 3.48 -
(90) 101.6 102.6 195.0 18 - - - - 2 136 160 8 19 M16 2.73 3.90 -
100 114.3 115.4 210.0 18 - - - - 2 151 175 8 19 M16 3.10 4.57 -
125 139.6 141.2 250.0 20 - - - - 2 182 210 8 23 M20 4.73 7.18 -
150 165.2 166.6 280.0 22 - - - - 2 212 240 8 23 M20 6.30 10.10 -
(175) 190.7 192.1 305.0 22 - - - - 2 237 265 12 23 M20 6.75 11.80 -
200 216.3 218.0 330.0 22 - - - - 2 262 290 12 23 M20 7.46 8.00 -
(225) 241.8 243.7 350.0 22 - - - - 2 282 310 12 23 M20 7.70 15.80 -
250 267.4 269.5 400.0 24 36 288 292 6 2 324 355 12 25 M22 11.80 22.60 12.70
300 318.5 321.0 445.0 24 38 340 346 6 3 368 400 16 25 M22 12.60 27.80 13.80
350 355.6 358.1 490.0 26 42 380 386 6 3 413 445 16 25 M22 16.30 36.90 18.20
400 406.4 409.0 560.0 28 44 436 442 6 3 475 510 16 27 M24 23.20 52.10 25.80
450 457.2 460.0 620.0 30 48 496 502 6 3 530 565 20 27 M24 29.30 68.40 33.40
500 508.0 511.0 675.0 30 48 548 554 6 3 585 620 20 27 M24 33.30 81.60 38.00
(550) 558.8 562.0 745.0 32(34) 52 604 610 6 3 640 680 20 27 M30 42.90 105(112) 49.40
600 609.6 613.0 795.0 32(36) 52 656 662 6 3 690 730 24 33 M30 45.40 120(134) 52.60
(650) 660.4 664.0 845.0 34(38) 56 706 712 6 3 740 780 24 33 M30 51.80 144(161) 60.20
700 711.2 715.0 905.0 34(40) 58 762 770 6 3 800 840 24 33 M30 59.00 176(196) 70.20
(750) 762.0 766.0 970.0 36(44) 62 816 824 6 3 855 900 24 33 M30 72.80 214(248) 86.50
800 812.8 817.0 1020.0 36(46) 64 868 876 6 3 905 950 28 33 M30 76.00 249(286) 92.00
(850) 863.6 868.0 1070.0 36(48) 66 920 928 6 3 955 1000 28 33 M30 80.10 (330) 98.70
900 914.4 919.0 1120.0 38(50) 70 971 979 6 3 1005 1050 28 33 M30 88.90 (377) 110.00
1000 1016.0 1021.0 1235.0 40(56) 74 1073 1081 6 3 1110 1160 28 39 M36 109.00 (512) 133.00
1100 1117.6 1122.0 1345.0 42(62) 95 1175 1185 8 3 1220 1270 28 39 M36 131.00 (675) 175.00
1200 1219.2 1224.0 1465.0 44(66) 101 1278 1290 8 3 1325 1380 32 39 M36 163.00 (854) 215.00
1350 1371.6 1376.0 1630.0 48(74) 110 1432 1450 8 3 1480 1540 36 45 M42 204.00 (1180) 274.00
1500 1524.0 1529.0 1795.0 50(82) 123 1585 1605 8 3 1635 1700 40 45 M42 248.00 (1590) 340.00

Packaging of JIS B 2220 10k Flanges

Packaging: JIS B2220 10K Flanges is sleeved into plastic bag individually, ten pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.

Prevent any damage.
During transportation items are tagged, packed in plastic bags and closed in carton boxes or seaworthy wooden cases.

plywood case,pallet and according to customer's requirment

Marking: JIS B2220 / B2291 B2220 10K Flanges are marked with alloy name, outside diameter, wall thickness and heat number. Additional information like standard and alloy numbers can be added on request.



MATERIALS OF JIS B 2220 10k Flanges

Stainless Steel JIS B 2220 10k Flanges

Carbon Steel JIS B 2220 10k Flanges

Duplex & Super JIS B 2220 10k Flanges

Nickel Alloy JIS B 2220 10k Flanges

Inconel JIS B 2220 10k Flanges

Incoloy JIS B 2220 10k Flanges

Hastelloy JIS B 2220 10k Flanges

Monel JIS B B 2220 10k Flanges
