ASTM A105 FLEXOLET SOCKET WELD


Hindustan pipes & Fittings is a dynamic group, which was established over a decade ago to cater to growing demands of ASTM A105 Flexolet Socket Weld standards in Weloldet, Nippolets, Sweepolets, Latrolets , Sockolets etc in all materials like Stainless Steel , Carbon Steel & High Nickel Alloys. We Manufacture, Export and Supply Pipe Fittings which meets with national and international quality standards and producing base which owns equipments conforming to international technical level and is well equipped with a whole set of advanced plasma refining equipments.

We manufacture all 3 groups of Fittings such as Buttweld (BW) fittings, Socket Weld (SW) fittings & Threaded (THD) Fittings as per ASTM standards & other International standards. We export our high quality ASTM A105 Flexolet Socket Weld to Kuwait, Egypt and Qatar.

SPECIFICATIONS OF ASTM A105 FLEXOLET SOCKET WELD

Stainless Steel ASTM A105 Flexolet Socket Weld | Carbon Steel ASTM A105 Flexolet Socket Weld | Nickel Alloys ASTM A105 Flexolet Socket Weld

Size : 1/2'' - 24

Type : Weldolet, Sockolet, Nippolet, Threadolet, Latrolet, Flexolet butt-weld, Flexolet Threaded and Sweepolet



MATERIALS :
Stainless Steel Olets – SS Flexolet Socket Weld
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Duplex Stainless Steel Olets - Duplex SS Flexolet Socket Weld
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.

Carbon Steel Olets – CS Flexolet Socket Weld
Standard : ASTM / ASME A/SA 105 / 350 LF 2 / A 516 GR.70 / IS 2062



Nickel Alloy Flexolet Socket Weld :
Standard : ASTM / ASME SB 564 / 160 / 472
Grade : UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)

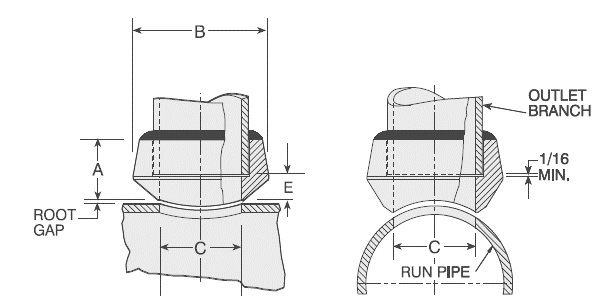

DIMENSIONS OF ASTM A105 FLEXOLET SOCKET WELD




3000 Outlet Size
Inches
Dimensions Appx Weight
Pounds
A B C E
1/4 3/4 1 0.364 3/8 0.14
3/8 13/16 1 1/16 0.493 7/16 0.14
1/2 1 1 15/32 0.622 9/16 0.28
3/4 1 1/16 1 45/64 0.824 9/16 0.39
1 1 5/16 2 3/32 1.049 25/32 0.73
1 1/4 1 5/16 2 17/32 1.380 23/32 0.96
1 1/2 1 3/8 2 25/32 1.610 3/4 1.12
2 1 1/2 3 5/16 2.067 13/16 1.66
2 1/2 1 13/16 4 29/32 2.469 3/4 2.73
3 2 4 21/32 3.068 15/16 3.88
4 1 1/4 5 13/16 4.026 1 1/16 6.60


CL6000 Outlet Size
Inches
Dimensions Appx Weight
Pounds
A B C E
1/2 1 1/4 1 3/4 0.464 13/16 0.28
3/4 1 7/16 2 1/16 0.612 15/16 0.39
1 1 9/16 2 17/32 0.815 1 1/32 0.73
1 1/4 1 5/8 2 1/2 1.160 1 1/32 0.96
1 1/2 1 11/16 3 5/16 1.338 1 1/16 1.63
2 2 1/16 3 31/32 1.687 1 3/8 1.66

Types of ASTM A105 Olets :

PACKAGING OF ASTM A105 FLEXOLET SOCKET WELD

Packaging: ASTM A105 Flexolet Socket Weld Flanges is sleeved into plastic bag individually, ten pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.

Prevent any damage.
During transportation items are tagged, packed in plastic bags and closed in carton boxes or seaworthy wooden cases.

plywood case,pallet and according to customer's requirment

Marking: ASTM A105 Flexolet Socket Weld Flanges are marked with alloy name, outside diameter, wall thickness and heat number. Additional information like standard and alloy numbers can be added on request.



MATERIALS OF ASTM A105 FLEXOLET SOCKET WELD

Stainless Steel ASTM A105 Flexolet Socket
Weld

Carbon Steel ASTM A105 Flexolet Socket
Weld

Duplex & Super duplex Steel ASTM A105 Flexolet Socket Weld

Nickel Alloy ASTM A105 Flexolet Socket
Weld

Inconel ASTM A105 Flexolet Socket Weld

Incoloy ASTM A105 Flexolet Socket Weld

Hastelloy ASTM A105 Flexolet Socket Weld

Monel ASTM A105 Flexolet Socket Weld
