FLANGES / BS 4504 Flanges

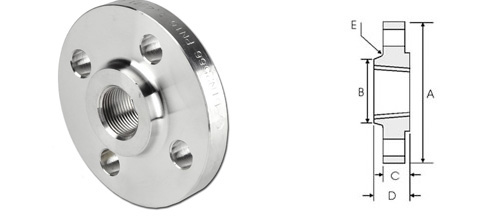

BS 4504 Threaded Flanges

Hindustan Pipes & Fittings is a dynamic group, which was established over a decade ago to cater to growing demands of BS 4504 Threaded Flanges standards in Weld Neck Flanges, Blind Flanges, Threaded Flanges, Loose or Lap Joint Flanges in all materials like Stainless Steel , Carbon Steel & High Nickel Alloys. We Manufacture, Export and Supply Flanges which meets with national and international quality standards and producing base which owns equipments conforming to international technical level and is well equipped with a whole set of advanced plasma refining equipments.
We export our high quality BS 4504 Threaded Flanges to Kuwait, Egypt and Qatar.

specifications of BS 4504 Threaded Flanges

Size : DN15 - DN2000
Standard: BS4504. BS 10
Type: Weld Neck Flanges, Threaded flanges, Slip On Flanges, Plate Flanges, Blind Flanges
Process:Forged, Stamped
Pressure grade:PN6, PN10, PN16, PN25, PN40

Types of BS Flanges - British Standards

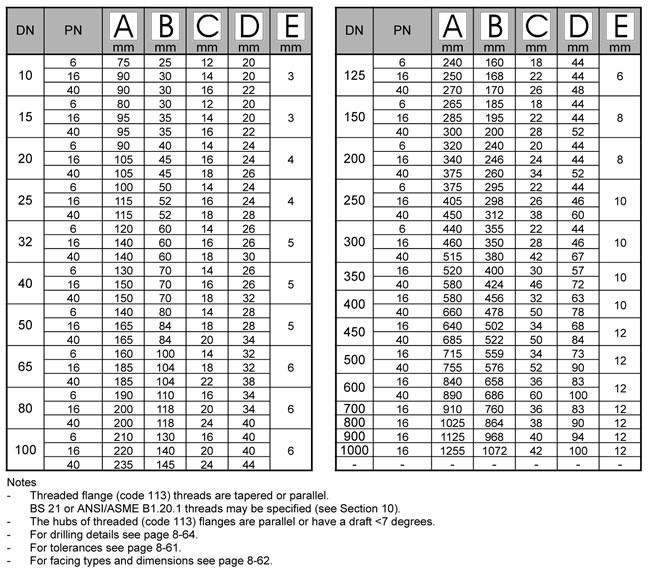

Dimensions of BS 4504 Threaded Flanges

Packaging of BS 4504 Threaded Flanges

Packaging: BS 4504 Threaded Flanges is sleeved into plastic bag individually, ten pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.

Prevent any damage.
During transportation items are tagged, packed in plastic bags and closed in carton boxes or seaworthy wooden cases.

plywood case,pallet and according to customer's requirment

Marking: BS 4504 / BS10 4504 Threaded Flanges are marked with alloy name, outside diameter, wall thickness and heat number. Additional information like standard and alloy numbers can be added on request.
