ASME B16.11 THREADED 45° ELBOW


Hindustan pipes & Fittings is a dynamic group, which was established over a decade ago to cater to growing demands of ASME B16.11 Threaded 45° Elbow standards in Elbows, Tee, Cross, Reducers, Nipple , Coupling etc in all materials like Stainless Steel , Carbon Steel & High Nickel Alloys. We Manufacture, Export and Supply Threaded (THD) Fittings which meets with national and international quality standards and producing base which owns equipments conforming to international technical level and is well equipped with a whole set of advanced plasma refining equipments.
We manufacture all 3 groups of Fittings such as Buttweld (BW) fittings, Socket Weld (SW) fittings & Threaded (THD) Fittings as per ASME B16.11 standards & other International standards. We export our high quality ASME B16.11 Threaded 45° Elbow to Kuwait, Egypt and Qatar.

SPECIFICATIONS OF ASME B16.11 THREADED 45° ELBOW

Stainless Steel ASME B16.11 Threaded 45° Elbow | Carbon Steel ASME B16.11 Threaded 45° Elbow | Nickel Alloys ASME B16.11 Threaded 45° Elbow





Size : 1/4" to 4"


Class : 3000 LBS, 6000 LBS, 9000 LBS


Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT


Form : Elbow, Tee, Nipple, Coupling, Plug, Socket, Bushing, Union, Weldolet, Sockolet, Threadolet


Dimension: ASME / ANSI B16.11


Specification: ASTM A182



Material and Grades:

Carbon Steel:
ASTM A234 Gr. WPB
ASTM A420 Gr. WPL6
ASTM A105
ASTM A350 Gr. LF2
Stainless Steel:
ASTM A403 WP316/316L
ASTM A403 WP304/304L
ASTM A182 F316L, 304L



VALUE ADDED SERVICES
Hot Dip Galvanizing
Electro polish

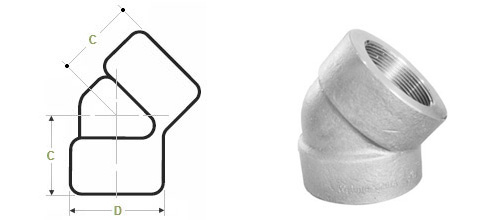

DIMENSIONS OF ASME B16.11 THREADED 45° ELBOW


Dimensions of Threaded elbow 45° - NPS 1/2 to 4 - 2000 LBS - ASME B16.11


NPS Minimum Length
of Thread
Outside Diameter
of Band
Minimum
Wall Thickness
Center to End
B J D G 90°
A
45°
C
1/2 10.9 13.6 33 3.18 28 22
3/4 12.7 13.9 38 3.18 33 25
1 14.7 17.3 46 3.68 38 28
17 18 56 3.89 44 33
17.8 18.4 62 4.01 51 35
2 19 19.2 75 4.27 60 43
23.6 28.9 92 5.61 76 52
3 25.9 30.5 109 5.99 86 64
4 27.7 33 146 6.55 106 79



Dimensions of Threaded elbow 45° - NPS 1/2 to 4 - 3000 LBS
- ASME B16.11

NPS Minimum Length
of Thread
Outside Diameter
of Band
Minimum
Wall Thickness
Center to End
B J D G 90°
A
45°
C
1/2 10.9 13.6 38 4.09 33 25
3/4 12.7 13.9 46 4.32 38 28
1 14.7 17.3 56 4.98 44 33
17 18 62 5.28 51 35
17.8 18.4 75 5.56 60 43
2 19 19.2 84 7.14 64 44
23.6 28.9 102 7.65 83 52
3 25.9 30.5 121 8.84 95 64
4 27.7 33 152 11.18 114 79

Dmensions of Threaded elbow 45° - NPS 1/2 to 4 - 6000 LBS -
ASME B16.11

NPS Minimum Length
of Thread
Outside Diameter
of Band
Minimum
Wall Thickness
Center to End
B J D G 90°
A
45°
C
1/2 10.9 13.6 46 8.15 38 28
3/4 12.7 13.9 56 8.53 44 33
1 14.7 17.3 62 9.93 51 35
17 18 75 10.59 60 43
17.8 18.4 84 11.07 64 44
2 19 19.2 102 12.09 83 52
23.6 28.9 121 15.29 95 64
3 25.9 30.5 146 16.64 106 79
4 27.7 33 152 18.67 114 79

Types of ASME B16.11 Threaded Fittings :

PACKAGING OF ASME B16.11 THREADED 45° ELBOW

Packaging: ASME B16.11 Threaded 45° Elbow Flanges is sleeved into plastic bag individually, ten pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.

Prevent any damage.
During transportation items are tagged, packed in plastic bags and closed in carton boxes or seaworthy wooden cases.

plywood case,pallet and according to customer's requirment

Marking: ASME B16.9 Threaded 45° Elbow Flanges are marked with alloy name, outside diameter, wall thickness and heat number. Additional information like standard and alloy numbers can be added on request.





MATERIALS OF ASME B16.11 THREADED 45° ELBOW

Stainless Steel ASME B16.11 Threaded 45° Elbow

Carbon Steel ASME B16.11 Threaded 45° Elbow

Duplex & Super duplex Steel ASME B16.11 Threaded 45° Elbow

Nickel Alloy ASME B16.11 Threaded 45° Elbow

Inconel ASME B16.11 Threaded 45° Elbow

Incoloy ASME B16.11 Threaded 45° Elbow

Hastelloy ASME B16.11 Threaded 45° Elbow

Monel ASME B16.11 Threaded 45° Elbow
