ASME B16.11 THREADED HALF COUPLING


Hindustan pipes & Fittings is a dynamic group, which was established over a decade ago to cater to growing demands of ASME B16.11 Threaded Half Coupling standards in Elbows, Tee, Cross, Reducers, Nipple , Coupling etc in all materials like Stainless Steel , Carbon Steel & High Nickel Alloys. We Manufacture, Export and Supply Threaded (THD) Fittings which meets with national and international quality standards and producing base which owns equipments conforming to international technical level and is well equipped with a whole set of advanced plasma refining equipments.
We manufacture all 3 groups of Fittings such as Buttweld (BW) fittings, Socket Weld (SW) fittings & Threaded (THD) Fittings as per ASME B16.11 standards & other International standards. We export our high quality ASME B16.11 Threaded Half Coupling to Kuwait, Egypt and Qatar.

SPECIFICATIONS OF ASME B16.11 THREADED HALF COUPLING

Stainless Steel ASME B16.11 Threaded Half Coupling | Carbon Steel ASME B16.11 Threaded Half Coupling | Nickel Alloys ASME B16.11 Threaded Half Coupling



Size : 1/4" to 4"


Class : 3000 LBS, 6000 LBS, 9000 LBS


Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT


Form : Elbow, Tee, Nipple, Coupling, Plug, Socket, Bushing, Union, Weldolet, Sockolet, Threadolet


Dimension: ASME / ANSI B16.11


Specification: ASTM A182



Material and Grades:

Carbon Steel:
ASTM A234 Gr. WPB
ASTM A420 Gr. WPL6
ASTM A105
ASTM A350 Gr. LF2
Stainless Steel:
ASTM A403 WP316/316L
ASTM A403 WP304/304L
ASTM A182 F316L, 304L



VALUE ADDED SERVICES
Hot Dip Galvanizing
Electro polish

DIMENSIONS OF ASME B16.11 THREADED HALF COUPLING

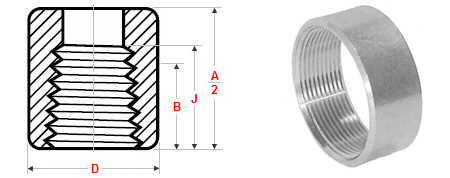

Dimensions threaded Half couplings - NPS 1/2 to 4 - 3000 LBS - ASME B16.11

NPS End to End Outside Diameter Minimum Length of Thread
A D B J
1/2 48 28 10.9 13.6
3/4 51 35 12.7 13.9
1 60 44 14.7 17.3
67 57 17 18
79 64 17.8 18.4
2 86 76 19 19.2
92 92 23.6 28.9
3 108 108 25.9 30.5
4 121 140 27.7 33



Dimensions threaded Half couplings - NPS 1/2 to 4 - 6000 LBS - ASME B16.11

NPS End to End Outside Diameter Minimum Length of Thread
A D B J
1/2 48 38 10.9 13.6
3/4 51 44 12.7 13.9
1 60 57 14.7 17.3
67 64 17 18
79 76 17.8 18.4
2 86 92 19 19.2
92 108 23.6 28.9
3 108 127 25.9 30.5
4 121 159 27.7 33

Types of ASME B16.11 Threaded Fittings :

PACKAGING OF ASME B16.11 THREADED HALF COUPLING

Packaging: ASME B16.11 Threaded Half Coupling Flanges is sleeved into plastic bag individually, ten pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.

Prevent any damage.
During transportation items are tagged, packed in plastic bags and closed in carton boxes or seaworthy wooden cases.

plywood case,pallet and according to customer's requirment

Marking: ASME B16.9 Threaded Half Coupling Flanges are marked with alloy name, outside diameter, wall thickness and heat number. Additional information like standard and alloy numbers can be added on request.



MATERIALS OF ASME B16.11 THREADED HALF COUPLING

Stainless Steel ASME B16.11 Threaded Half Coupling

Carbon Steel ASME B16.11 Threaded Half Coupling

Duplex & Super duplex Steel ASME B16.11 Threaded Half Coupling

Nickel Alloy ASME B16.11 Threaded Half Coupling

Inconel ASME B16.11 Threaded Half Coupling

Incoloy ASME B16.11 Threaded Half Coupling

Hastelloy ASME B16.11 Threaded Half Coupling

Monel ASME B16.11 Threaded Half Coupling
