Hindustan Pipes & Fittings is a dynamic group, which was established over a decade ago to cater to growing demands of ASME
B16.5 Class 300 Flanges standards in Slip On Flanges, Weld Neck Flanges, Blind Flanges in all materials like Stainless Steel , Carbon Steel
& High Nickel Alloys. We Manufacture, Export and Supply Flanges which meets with national
and international quality standards and producing base which owns equipments conforming to international technical level
and is well equipped with a whole set of advanced plasma refining equipments.
We export our high quality ASME B16.5 Class 300 flanges to Kuwait, Egypt and Qatar.
Size : 1/2"NB TO 60"NB IN
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Face Type: Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
ASME B16.5 Class 300 Flanges Type: Weld Neck Flanges, Blind Flanges and Slip On Flanges
Coating: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Dimension:
ANSI/ASME B16.5, ANSI/ASME B16.47 Series A (MSS SP-44), ANSI/ASME B16.47 Series B (API 605),
ANSI/ASME B16.36, ANSI/ASME B16.48 (API 590)

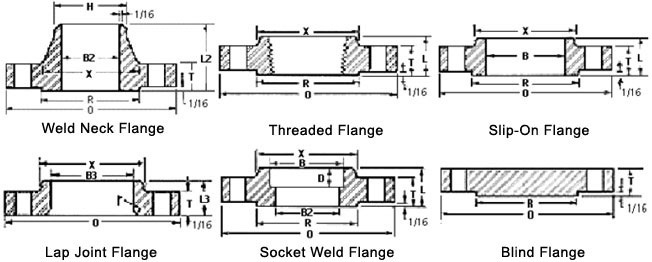

Execution | ASME |
---|---|
Welding Neck Flanges |
B 16.5 / 16:47 |
Blind Flanges |
B 16.5 / 16:47 |
Slip On Flanges |
B 16.5 |
Lap Joint Flanges |
B 16.5 |
Threaded Flanges |
B 16.5 |
Socket Welding Flanges |
B 16.5 |
Long Welding Neck Flanges |
B 16.5 |
Orifice Flanges |
B 16:36 |
Spectacle Blind |
B 16:38 |
Flanges to BS 3293 / API 6A, as well as drawing |
Packaging: ASME B16.5 Class 300 Flanges is sleeved into plastic bag individually, ten pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.
Prevent any damage.
During transportation items are tagged, packed in plastic bags and closed in carton boxes or seaworthy wooden cases.
plywood case,pallet and according to customer's requirment
Marking: ASME B16.5 Class 300 Flanges are marked with alloy name, outside diameter, wall thickness and heat number. Additional information like standard and alloy numbers can be added on request.
Stainless Steel
ASME B16.5 Class 300 Flanges
Carbon Steel
ASME B16.5 Class 300 Flanges
Duplex & Super duplex Steel
ASME B16.5 Class 300 Flanges
Nickel Alloy
ASME B16.5 Class 300 Flanges
Inconel
ASME B16.5 Class 300 Flanges
Incoloy
ASME B16.5 Class 300 Flanges
Hastelloy
ASME B16.5 Class 300 Flanges
Monel
ASME B16.5 Class 300 Flanges
