Pr EN 1092-1 PN6 Threaded Flanges


Hindustan Pipes & Fittings is a dynamic group, which was established over a decade ago to cater to growing demands of Pr EN 1092-1 PN6 Threaded Flanges standards in Weld Neck Flanges, Blind Flanges, Threaded Flanges, Loose or Lap Joint Flanges in all materials like Stainless Steel , Carbon Steel & High Nickel Alloys. We Manufacture, Export and Supply Flanges which meets with national and international quality standards and producing base which owns equipments conforming to international technical level and is well equipped with a whole set of advanced plasma refining equipments.
We export our high quality Pr EN 1092-1 PN6 Threaded Flanges to Kuwait, Egypt and Qatar.

specifications of Pr EN 1092-1 PN6 Threaded Flanges



Size : DN15 - DN2000
Standard: EN 1092
Type: Weld Neck Flanges(Raised Face), Threaded flanges, Loose Flanges, Plate Flanges, Blind Flanges
Process: Forged, Stamped
Pressure grade: PN6, PN10, PN16, PN25, PN40

Dimensions of Pr EN 1092-1 PN6 Threaded Flanges

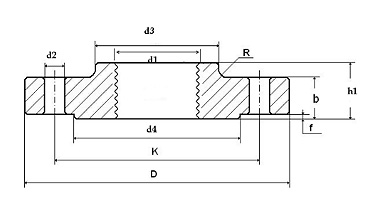

EN 1092-1 TYPE 13 PN6 THREADED FLANGE
Rated Diameter Flange Neck Raised face Screws

Weight
(7,85 Kg/dm3)

d1 Thread k D b h1 d3 d4 f d2 Thread Bolt holes KG
15 21,3 R 1/2" 55 80 12 20 30,0 40,0 2,0 11 M10 4 0,373
20 26,9 R 3/4" 65 90 14 24 40,0 50,0 2,0 11 M10 4 0,584
25 33,7 R 1" 75 100 14 24 50,0 60,0 2,0 11 M10 4 0,729
32 42,4 R 1-1/4" 90 120 14 26 60,0 70,0 2,0 14 M12 4 1,040
40 48,3 R 1-1/2" 100 130 14 26 70,0 80,0 3,0 14 M12 4 1,200
50 60,3 R 2" 110 140 14 28 80,0 90,0 3,0 14 M12 4 1,340
65 76,1 R 2-1/2" 130 160 14 32 100,0 110,0 3,0 14 M12 4 1,830
80 88,9 R 3" 150 190 16 34 110,0 128,0 3,0 18 M16 4 2,750
100 114,3 R 4" 170 210 16 40 130,0 148,0 3,0 18 M16 4 3,010
125 139,7 R 5" 200 240 18 44 160,0 178,0 3,0 18 M16 8 4,300
150 168,3 R 6" 225 265 18 44 185,0 202,0 3,0 18 M16 8 4,630

Packaging of Pr EN 1092-1 PN6 Threaded Flanges

Packaging: Pr EN 1092-1 PN6 Threaded Flanges is sleeved into plastic bag individually, ten pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.

Prevent any damage.
During transportation items are tagged, packed in plastic bags and closed in carton boxes or seaworthy wooden cases.

plywood case,pallet and according to customer's requirment

Marking: Pr EN 1092-1 PN6 Threaded Flanges are marked with alloy name, outside diameter, wall thickness and heat number. Additional information like standard and alloy numbers can be added on request.
