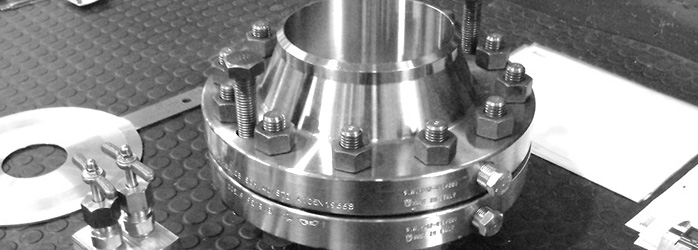

ORIFICE FLANGES


is a dynamic group, which was established over a decade ago to cater to growing demands of Orifice Flanges standards in ASME / ANSI B16.5 Flanges,ASME/ANSI B16.47 etc in all materials like Stainless Steel , Carbon Steel & High Nickel Alloys. We Manufacture, Export and Supply Flanges which meets with national and international quality standards and producing base which owns equipments conforming to international technical level and is well equipped with a whole set of advanced plasma refining equipments.

We export our high quality Orifice flanges to Kuwait, Egypt and Qatar.

SPECIFICATIONS OF SLIP ON FLANGES

Range: ½” (15 NB) to 48” (1200NB)



Pressure Ratings: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6,10,16,25, 40,64,100,160 ETC. available with NACE MR 01-75



Value Added Services:
CNC Machining
Customized Flanges



DIMENSIONS OF WELD NECK FLANGES

PACKAGING OF SLIP ON FLANGES

Packaging: Orifice Flanges is sleeved into plastic bag individually, ten pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.

Prevent any damage.
During transportation items are tagged, packed in plastic bags and closed in carton boxes or seaworthy wooden cases.

plywood case,pallet and according to customer's requirment

Marking: Orifice Flanges are marked with alloy name, outside diameter, wall thickness and heat number. Additional information like standard and alloy numbers can be added on request.



MATERIALS OF ORIFICE FLANGES

Stainless Steel Orifice Flanges

Carbon Steel Orifice Flanges

Duplex & Super duplex Steel Orifice Flanges

Nickel Alloy Orifice
Flanges

Inconel Orifice Flanges

Incoloy Orifice Flanges

Hastelloy Orifice Flanges

Monel Orifice Flanges
