HIGH HUB BLIND FLANGES


is a dynamic group, which was established over a decade ago to cater to growing demands of High Hub Blind Flanges standards in ASME / ANSI B16.5 Flanges,ASME/ANSI B16.47 etc in all materials like Stainless Steel , Carbon Steel & High Nickel Alloys. We Manufacture, Export and Supply Flanges which meets with national and international quality standards and producing base which owns equipments conforming to international technical level and is well equipped with a whole set of advanced plasma refining equipments.
We export our high quality Weld Neck flanges to Kuwait, Egypt and Qatar.

SPECIFICATIONS OF WELD NECK FLANGES

Range: ½” (15 NB) to 48” (1200NB)
Pressure Ratings: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6,10,16,25, 40,64,100,160 ETC. available with NACE MR 01-75

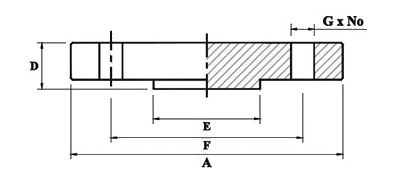

DIMENSIONS OF HIGH HUB BLIND FLANGES


Item ID Class 150 HH High Hub Blind Blind Flanges Description
1FF .51RHHBLD 1/2 150 RF High Hub Blind BLIND ASME B16.5 001 lbs
1FF .751RHHBL 3/4 150 RF High Hub Blind BLIND ASME B16.5 002 lbs
1FF 11RHHBL 1 150 RF High Hub Blind BLIND ASME B16.5 002 lbs
1FF 1.51RHHBL 1 1/2 150 RF High Hub Blind BLIND ASME B16.5 004 lbs
1FF 21RHHBL 2 150 RF High Hub Blind BLIND ASME B16.5 005 lbs
1FF 31RHHBL 3 150 RF High Hub Blind BLIND ASME B16.5 009 lbs
1FF 41RHHBL 4 150 RF High Hub Blind BLIND ASME B16.5 017 lbs



Item ID Class 300 HH High Hub Blind Flanges Description
1FF .53RHHBL 1/2 300 RF HIGH HUB BLIND ASME B16.5 002 lbs
1FF .753RHHBL 3/4 300 RF HIGH HUB BLIND ASME B16.5 003 lbs
1FF 13RHHBL 1 300 RF HIGH HUB BLIND ASME B16.5 003 lbs
1FF 1.53RHHBL 1 1/2 300 RF HIGH HUB BLIND ASME B16.5 006 lbs
1FF 23RHHBL 2 300 RF HIGH HUB BLIND ASME B16.5 008 lbs



Item ID Class 600 HH High Hub Blind Flanges Description
1FF .756RHHBL 3/4 600 RF HIGH HUB BLIND ASME B16.5 004 lbs
1FF .56RHHBL 1/2 600 RF HIGH HUB BLIND ASME B16.5 004 lbs
1FF 16RHHBL 1 600 RF HIGH HUB BLIND ASME B16.5 004 lbs
1FF 1.56RHHBL 1 1/2 600 RF HIGH HUB BLIND ASME B16.5 008 lbs
1FF 26RHHBL 2 600 RF HIGH HUB BLIND ASME B16.5 010 lbs

PACKAGING OF WELD NECK FLANGES

Packaging: High Hub Blind Flanges is sleeved into plastic bag individually, ten pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.

Prevent any damage.
During transportation items are tagged, packed in plastic bags and closed in carton boxes or seaworthy wooden cases.

plywood case,pallet and according to customer's requirment

Marking: High Hub Blind Flanges are marked with alloy name, outside diameter, wall thickness and heat number. Additional information like standard and alloy numbers can be added on request.



MATERIALS OF HIGH HUB BLIND FLANGES

Stainless Steel High Hub Blind Flanges

Carbon Steel High Hub Blind Flanges

Duplex & Super duplex Steel High Hub Blind Flanges

Nickel Alloy High Hub Blind Flanges

Inconel High Hub Blind Flanges

Incoloy High Hub Blind Flanges

Hastelloy High Hub Blind Flanges

Monel High Hub Blind Flanges
