ASME B16.9 BUTTWELD REDUCING TEE


Hindustan pipes & Fittings is a dynamic group, which was established over a decade ago to cater to growing demands of ASME B16.9 Buttweld Reducing Tee standards in Elbow, Tee, Cross, Reducers, Nipple , Coupling etc in all materials like Stainless Steel , Carbon Steel & High Nickel Alloys. We Manufacture, Export and Supply Buttweld Fittings which meets with national and international quality standards and producing base which owns equipments conforming to international technical level and is well equipped with a whole set of advanced plasma refining equipments.
We manufacture all 3 groups of Fittings such as Buttweld (BW) fittings, Socket Weld (SW) fittings & Threaded (THD) fittings as per ASME B16.11 standards & other International standards. We export our high quality ASME B16.9 Buttweld Reducing Tee to Kuwait, Egypt and Qatar.

SPECIFICATIONS OF ASME B16.9 BUTTWELD REDUCING TEE



Sizes: 1/2” TO 36” (SEAMLESS UPTO 24”) (WELDED 8” TO 36” )

Standards: ASME / ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings'
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications'

Schedule: Sch 5 TO Sch XXS.

Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Type: Buttweld (BW)



Material and Grades:

Carbon Steel:
ASTM A234 Gr. WPB
ASTM A420 Gr. WPL6
ASTM A105
ASTM A350 Gr. LF2
Stainless Steel:
ASTM A403 WP316/316L
ASTM A403 WP304/304L
ASTM A182 F316L, 304L

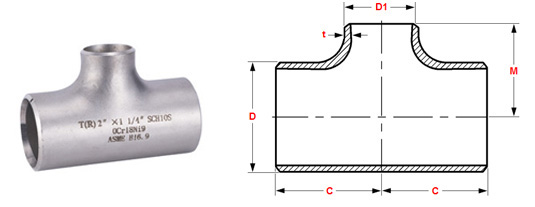

DIMENSIONS OF ASME B16.9 BUTTWELD REDUCING TEE


Nominal Pipe Size Outside diameter
at bevel
Center-to-End
Run Outlet Run Outlet Run (C) Outlet (M)
1/2" 1/4"
3/8"
21.3 13.7
17.3
25 25
3/4" 3/8"
1/2"
26.7 17.3
21.3
29 29
1" 1/2"
3/4"
33.4 21.3
26.7
38 38
1 1/4" 1/2"
3/4"
1"
42.2 21.3
26.7
33.4
48 48
1 1/2" 1/2"
3/4"
1"
1 1/4"
48.3 21.3
26.7
33.4
42.2
57 57
2" 3/4"
1"
1 1/4"
1 1/2"
60.3 26.7
33.4
42.2
48.3
64 44
51
57
60
2 1/2" 1"
1 1/4"
1 1/2"
2"
73.0 33.4
42.2
48.3
60.3
76 57
64
67
70
3" 1 1/4"
1 1/2"
2"
2 1/2"
88.9 42.2
48.3
60.3
73.0
86 70
73
76
83
3 1/2" 1 1/2"
2"
2 1/2"
3"
101.6 48.3
60.3
73.0
88.9
95 79
83
89
92
4" 1 1/2"
2"
2 1/2"
3"
3 1/2"
114.3 48.3
60.3
73.0
88.9
101.6
105 86
89
95
98
102
5" 2"
2 1/2"
3"
3 1/2"
4"
141.3 60.3
73.0
88.9
101.6
114.3
124 105
108
111
114
117
6" 2 1/2"
3"
3 1/2"
4"
5
168.3 73.0
88.9
101.6
114.3
141.3
143 121
124
127
130
137
8" 3 1/2"
4"
5"
6"
219.1 101.6
114.3
141.3
168.3
178 152
156
162
168
10" 4"
5"
6"
8"
273.0 114.3
141.3
168.3
219.1
216 184
191
194
203
12" 5"
6"
8"
10"
323.8 141.3
168.3
219.1
273.0
254 216
219
229
241
14" 6"
8"
10"
12"
355.6 168.3
219.1
273.0
323.8
279 238
248
257
270
16" 6"
8"
10"
12"
14"
406.4 168.3
219.1
273.0
323.8
355.6
305 264
273
283
295
305
18" 8"
10"
12"
14"
16"
457.0 219.1
273.0
323.8
355.6
406.4
343 298
308
321
330
330
20" 8"
10"
12"
14"
16"
18"
508.0 219.1
273.0
323.8
355.6
406.4
457.0
381 324
333
346
356
356
368
22" 10"
12"
14"
16"
18"
20"
559.0 273.0
323.8
355.6
406.4
457.0
508.0
419 359
371
381
381
394
406
24" 10"
12"
14"
16"
18"
20"
22"
610.0 273.0
323.8
355.6
406.4
457.0
508.0
559.0
432 384
397
406
406
419
432
432

PACKAGING OF ASME B16.9 BUTTWELD REDUCING TEE

Packaging: ASME B16.9 Buttweld Reducing Tee Flanges is sleeved into plastic bag individually, ten pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.

Prevent any damage.
During transportation items are tagged, packed in plastic bags and closed in carton boxes or seaworthy wooden cases.

plywood case,pallet and according to customer's requirment

Marking: ASME B16.9 Buttweld Reducing Tee Flanges are marked with alloy name, outside diameter, wall thickness and heat number. Additional information like standard and alloy numbers can be added on request.

MATERIALS OF ASME B16.9 BUTTWELD REDUCING TEE

Stainless Steel ASME B16.9 Buttweld Reducing Tee

Carbon steel ASME B16.9 Buttweld Reducing Tee

Duplex Steel ASME B16.9 Buttweld Reducing Tee

Nickel Alloy ASME B16.9 Buttweld Reducing Tee

Inconel ASME B16.9 Buttweld Reducing Tee

Incoloy ASME B16.9 Buttweld Reducing Tee

Hastelloy ASME B16.9 Buttweld Reducing Tee

Monel ASME B16.9 Buttweld Reducing Tee
