ASME B16.9 BUTTWELD EQUAL CROSS


Hindustan pipes & Fittings is a dynamic group, which was established over a decade ago to cater to growing demands of ASME B16.9 Buttweld Equal Cross standards in Elbow, Tee, Cross, Reducers, Nipple , Coupling etc in all materials like Stainless Steel , Carbon Steel & High Nickel Alloys. We Manufacture, Export and Supply Buttweld Fittings which meets with national and international quality standards and producing base which owns equipments conforming to international technical level and is well equipped with a whole set of advanced plasma refining equipments.
We manufacture all 3 groups of Fittings such as Buttweld (BW) fittings, Socket Weld (SW) fittings & Threaded (THD) fittings as per ASME B16.11 standards & other International standards. We export our high quality ASME B16.9 Buttweld Equal Cross to Kuwait, Egypt and Qatar.

SPECIFICATIONS OF ASME B16.9 BUTTWELD EQUAL CROSS



Sizes: 1/2” TO 36” (SEAMLESS UPTO 24”) (WELDED 8” TO 36” )

Standards: ASME / ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings'
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications'

Schedule: Sch 5 TO Sch XXS.

Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Type: Buttweld (BW)



Material and Grades:

Carbon Steel:
ASTM A234 Gr. WPB
ASTM A420 Gr. WPL6
ASTM A105
ASTM A350 Gr. LF2
Stainless Steel:
ASTM A403 WP316/316L
ASTM A403 WP304/304L
ASTM A182 F316L, 304L

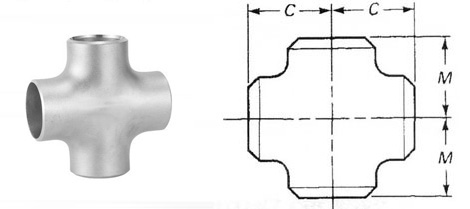

DIMENSIONS OF ASME B16.9 BUTTWELD EQUAL CROSS


Nominal Pipe Size (NPS)

DN

Outside Diameter at Bevel

Center- to-End



Run.C

Outlet. M[Notes(1) and (2)]
1/2 15 21.3 25 25
3/4 20 26.7 29 29
1 25 33.4 38 38
1-1/4 32 42.2 48 48
1-1/2 40 48.3 57 57
2 50 60.3 64 64
2-1/2 65 73.0 76 76
3 80 88.9 86 86
3-1/2 90 101.6 95 95
4 100 114.3 105 105
5 125 141.3 124 124
6 150 168.3 143 143
8 200 219.1 178 178
10 250 273.0 216 216
12 300 323.8 254 254
14 350 355.6 279 279
16 400 406.4 305 305
18 450 457 343 343
20 500 508 381 381
22 550 559 419 419
24 600 610 432 432
26 650 660 495 495
28 700 711 521 521
30 750 762 559 559
32 800 813 597 597
34 850 864 635 635
36 900 914 673 673
38 950 965 711 711
40 1000 1016 749 749
42 1050 1067 762 711
44 1100 1118 813 762
46 1150 1168 851 800
48 1200 1219 889 838

PACKAGING OF ASME B16.9 BUTTWELD EQUAL CROSS

Packaging: ASME B16.9 Buttweld Equal Cross Flanges is sleeved into plastic bag individually, ten pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.

Prevent any damage.
During transportation items are tagged, packed in plastic bags and closed in carton boxes or seaworthy wooden cases.

plywood case,pallet and according to customer's requirment

Marking: ASME B16.9 Buttweld Equal Cross Flanges are marked with alloy name, outside diameter, wall thickness and heat number. Additional information like standard and alloy numbers can be added on request.

MATERIALS OF ASME B16.9 BUTTWELD EQUAL CROSS

Stainless Steel ASME B16.9 Buttweld Equal Cross

Carbon steel ASME B16.9 Buttweld Equal Cross

Duplex Steel ASME B16.9 Buttweld Equal Cross

Nickel Alloy ASME B16.9 Buttweld Equal Cross

Inconel ASME B16.9 Buttweld Equal Cross

Incoloy ASME B16.9 Buttweld Equal Cross

Hastelloy ASME B16.9 Buttweld Equal Cross

Monel ASME B16.9 Buttweld Equal Cross
