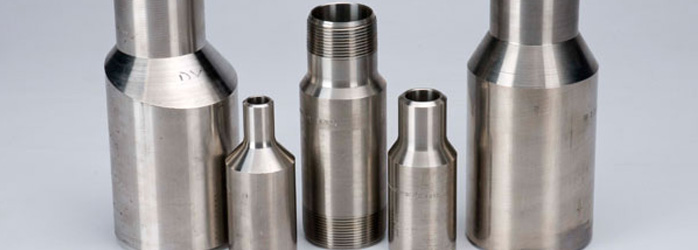

ASME B16.9 BUTTWELD SWEDGE NIPPLES


Hindustan pipes & Fittings is a dynamic group, which was established over a decade ago to cater to growing demands of ASME B16.9 Buttweld Swedge Nipples standards in Elbow, Tee, Cross, Reducers, Nipple , Coupling etc in all materials like Stainless Steel , Carbon Steel & High Nickel Alloys. We Manufacture, Export and Supply Buttweld Fittings which meets with national and international quality standards and producing base which owns equipments conforming to international technical level and is well equipped with a whole set of advanced plasma refining equipments.
We manufacture all 3 groups of Fittings such as Buttweld (BW) fittings, Socket Weld (SW) fittings & Threaded (THD) fittings as per ASME B16.11 standards & other International standards. We export our high quality ASME B16.9 Buttweld Swedge Nipples to Kuwait, Egypt and Qatar.

SPECIFICATIONS OF ASME B16.9 BUTTWELD SWEDGE NIPPLES



Sizes: 1/2” TO 36” (SEAMLESS UPTO 24”) (WELDED 8” TO 36” )

Standards: ASME / ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings'
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications'

Schedule: Sch 5 TO Sch XXS.

Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Type: Buttweld (BW)



Material and Grades:

Carbon Steel:
ASTM A234 Gr. WPB
ASTM A420 Gr. WPL6
ASTM A105
ASTM A350 Gr. LF2
Stainless Steel:
ASTM A403 WP316/316L
ASTM A403 WP304/304L
ASTM A182 F316L, 304L



DIMENSIONS OF ASME B16.9 BUTTWELD SWEDGE NIPPLES

I.D. or Nominal Size Outside Diameter Length
NU EUE NU EUE
1/8 -- -- -- --
1/4 .540 -- 2 1/4 --
3/8 .675 -- 2 1/2 --
1/2 .840 -- 2 3/4 --
3/4 1.050 -- 3 --
1 1.315 1.469 3 1/2 4 1/2
1 1/4 1.660 1.812 4 6



I.D. or Nominal Size Outside Diameter Length
NU EUE NU EUE
1 1/2 1.900 2.094 4 1/2 6
2 2.375 2.594 6 1/2 8
2 1/2 2.875 3.094 7 8
3 3.500 3.750 8 8
3 1/2 4.000 4.250 8 8
4 4.500 4.750 9 9



Specification Compliance Data for Swage Nipples

End Connections
Threads ANSI/ASME B1.20.1
API 5B
Beveled Ends ANSI B16.9
Square Cut Ends ANSI B16.11
Swage Nipples
Stainless ASME/ASTM SA403WP
Low Temp ASME/ASTM SA403WP
Nickel Alloy ASME/ASTM SB366
Materials
Stainless ASME/ASTM SA312 & 182
Chrome & Low Temp ASME/ASTM SA335, 333, 182, 350
Nickel Alloy ASME/ASTM SB161, 165, 163, 407, 464, 622, 160, 164, 166, 408, 473, 619

PACKAGING OF ASME B16.9 BUTTWELD SWEDGE NIPPLES

Packaging: ASME B16.9 Buttweld Swedge Nipples Flanges is sleeved into plastic bag individually, ten pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.

Prevent any damage.
During transportation items are tagged, packed in plastic bags and closed in carton boxes or seaworthy wooden cases.

plywood case,pallet and according to customer's requirment

Marking: ASME B16.9 Buttweld Swedge Nipples Flanges are marked with alloy name, outside diameter, wall thickness and heat number. Additional information like standard and alloy numbers can be added on request.

MATERIALS OF ASME B16.9 BUTTWELD SWEDGE NIPPLES

Stainless Steel ASME B16.9 Buttweld Swedge Nipples

Carbon steel ASME B16.9 Buttweld Swedge Nipples

Duplex Steel ASME B16.9 Buttweld Swedge Nipples

Nickel Alloy ASME B16.9 Buttweld Swedge Nipples

Inconel ASME B16.9 Buttweld Swedge Nipples

Incoloy ASME B16.9 Buttweld Swedge Nipples

Hastelloy ASME B16.9 Buttweld Swedge Nipples

Monel ASME B16.9 Buttweld Swedge Nipples
