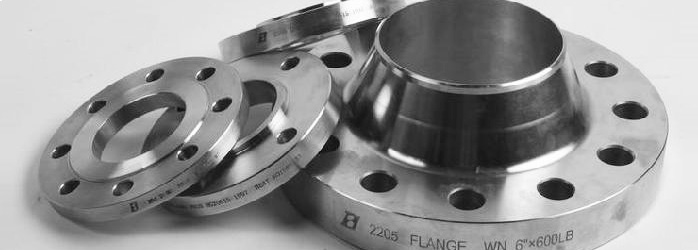

Pr EN 1092-1 PN6 WNRF Flanges


Hindustan Pipes & Fittings is a dynamic group, which was established over a decade ago to cater to growing demands of Pr EN 1092-1 PN6 WNRF Flanges standards in Weld Neck Flanges, Blind Flanges, Threaded Flanges, Loose or Lap Joint Flanges in all materials like Stainless Steel , Carbon Steel & High Nickel Alloys. We Manufacture, Export and Supply Flanges which meets with national and international quality standards and producing base which owns equipments conforming to international technical level and is well equipped with a whole set of advanced plasma refining equipments.
We export our high quality Pr EN 1092-1 PN6 WNRF Flanges to Kuwait, Egypt and Qatar.

specifications of Pr EN 1092-1 PN6 WNRF Flanges

Size : DN15 - DN2000
Standard: EN 1092
Type: Weld Neck Flanges(Raised Face), Threaded flanges, Loose Flanges, Plate Flanges, Blind Flanges
Process: Forged, Stamped
Pressure grade: PN6, PN10, PN16, PN25, PN40

Dimensions of Pr EN 1092-1 PN6 WNRF Flanges



EN 1092-1 TYPE 11 PN6 WNRF FLANGE
Rated Diameter Flange Neck Raised face Screws Weight
(7,85 Kg/dm3)
d1 k D b h1 d3 s r h2 d4 f d2 Thread Bolt holes Kg
15 21,3 55 80 12 30 30 2,00 4 6 40 2 11 M10 4 0,408
20 26,9 65 90 14 32 38 2,30 4 6 50 2 11 M10 4 0,621
25 33,7 75 100 14 35 42 2,60 4 6 60 2 11 M10 4 0,762
32 42,4 90 120 14 35 55 2,60 6 6 70 2 14 M12 4 1,110
40 48,3 100 130 14 38 62 2,60 6 7 80 3 14 M12 4 1,260
50 60,3 110 140 14 38 74 2,90 6 8 90 3 14 M12 4 1,430
65 76,1 130 160 14 38 88 2,90 6 9 110 3 14 M12 4 1,770
80 88,9 150 190 16 42 102 3,20 8 10 128 3 18 M16 4 2,880
100 114,3 170 210 16 45 130 3,60 8 10 148 3 18 M16 4 3,410
125 139,7 200 240 18 48 155 4,00 8 10 178 3 18 M16 8 4,650
150 168,3 225 265 18 48 184 4,50 10 12 202 3 18 M16 8 5,500
200 219,1 280 320 20 55 236 6,30 10 15 258 3 18 M16 8 8,600
250 273,0 335 375 22 60 290 6,30 12 15 312 3 18 M16 12 11,700
300 323,9 395 440 22 62 342 7,10 12 15 365 4 22 M20 12 15,300
350 355,6 445 490 22 62 385 7,10 12 15 415 4 22 M20 12 20,300
400 406,4 495 540 22 65 438 7,10 12 15 465 4 22 M20 16 23,100
450 457,0 550 595 22 65 492 7,10 12 15 520 4 22 M20 16 27,000
500 508,0 600 645 24 68 538 7,10 12 15 570 4 22 M20 20 30,800
600 610,0 705 755 30 70 640 7,10 12 16 670 5 26 M24 20 44,000
700 711,0 810 860 30 76 740 8,00 12 16 775 5 26 M24 24 53,700
800 813,0 920 975 30 76 842 8,00 12 16 880 5 30 M27 24 64,400
900 914,0 1020 1075 34 78 942 8,00 12 16 980 5 30 M27 24 79,200
1000 1016,0 1120 1175 38 82 1045 8,00 16 16 1080 5 30 M27 28 98,600
1200 1219,0 1340 1405 42 104 1248 8,80 16 20 1295 5 33 M30 32 152,000
1400 1422,0 1560 1630 56 114 1452 8,80 16 20 1510 5 36 M33 36 246,000
1600 1626,0 1760 1830 63 119 1655 10,00 16 20 1710 5 36 M33 40 309,000
1800 1829,0 1970 2045 69 133 1855 11,00 16 20 1920 5 39 M36 44 400,000
2000 2032,0 2180 2265 74 146 2058 12,50 16 25 2125 5 42 M39 48 516,000
2200 2235,0 2390 2475 81 154 2260 14,00 18 25 2335 5 42 M39 52 645,000
2400 2438,0 2600 2685 87 168 2462 15,00 18 25 2545 5 42 M39 56 786,000
2600 2620,0 2810 2905 91 175 2665 16,00 18 25 2750 5 48 M45 60 1.021,000
2800 2820,0 3020 3115 101 188 2865 17,00 18 30 2960 5 48 M45 64 1.256,000
3000 3020,0 3220 3315 102 192 3068 20,00 18 30 3160 5 48 M45 68 1.404,000
3200 3220,0 3430 3525 106 202 3272 20,00 20 30 3370 5 48 M45 72 1.617,000
3400 3420,0 3640 3735 110 214 3475 22,00 20 35 3580 5 48 M45 76 1.877,000
3600 3620,0 3860 3970 124 229 3678 22,00 20 35 3790 5 56 M52 80 2.366,000

Packaging of Pr EN 1092-1 PN6 WNRF Flanges

Packaging: Pr EN 1092-1 PN6 WNRF Flanges is sleeved into plastic bag individually, ten pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.

Prevent any damage.
During transportation items are tagged, packed in plastic bags and closed in carton boxes or seaworthy wooden cases.

plywood case,pallet and according to customer's requirment

Marking: Pr EN 1092-1 PN6 WNRF Flanges are marked with alloy name, outside diameter, wall thickness and heat number. Additional information like standard and alloy numbers can be added on request.



MATERIALS OF Pr EN 1092-1 PN6 WNRF Flanges

Stainless Steel Pr EN
1092-1 PN6 WNRF Flanges

Carbon Steel Pr EN
1092-1 PN6 WNRF Flanges

Duplex & Super Pr EN
1092-1 PN6 WNRF Flanges

Nickel Alloy Pr EN
1092-1 PN6 WNRF Flanges

Inconel Pr EN 1092-1
PN6 WNRF Flanges

Incoloy Pr EN 1092-1
PN6 WNRF Flanges

Hastelloy Pr EN 1092-1
PN6 WNRF Flanges

Monel Pr EN 1092-1
PN6 WNRF Flanges
