Pr EN 1092-1 PN16 Loose Flanges

Hindustan Pipes & Fittings is a dynamic group, which was established over a decade ago to cater to growing demands of Pr EN 1092-1 PN16 Loose Flanges standards in Weld Neck Flanges, Blind Flanges, Threaded Flanges, Loose or Lap Joint Flanges in all materials like Stainless Steel , Carbon Steel & High Nickel Alloys. We Manufacture, Export and Supply Flanges which meets with national and international quality standards and producing base which owns equipments conforming to international technical level and is well equipped with a whole set of advanced plasma refining equipments.
We export our high quality Pr EN 1092-1 PN16 Loose Flanges to Kuwait, Egypt and Qatar.

specifications of Pr EN 1092-1 PN16 Loose Flanges

Size : DN15 - DN2000
Standard: EN 1092
Type: Weld Neck Flanges(Raised Face), Threaded flanges, Loose Flanges, Plate Flanges, Blind Flanges
Process: Forged, Stamped
Pressure grade: PN6, PN10, PN16, PN25, PN40

Dimensions of Pr EN 1092-1 PN16 Loose Flanges

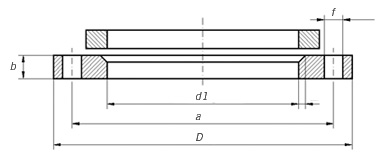

EN 1092-1 TYPE 02 PN16 LOOSE FLANGE
Rated Diameter	Flange					Screws			Weight (7,85 Kg/dm3)
Rated Diameter	d1	k	D	b	e	d2	Thread	Bolt holes	KG
15	25	65	95	14	3	14	M12	4	0,655
20	31	75	105	16	4	14	M12	4	0,913
25	38	85	115	16	4	14	M12	4	1,081
32	47	100	140	18	5	18	M16	4	1,781
40	53	110	150	18	5	18	M16	4	2,035
50	65	125	165	20	5	18	M16	4	2,668
65	81	145	185	20	6	18	M16	4	3,241
80	94	160	200	20	6	18	M16	8	3,512
100	120	180	220	22	6	18	M16	8	4,247
125	145	210	250	22	6	18	M16	8	5,258
150	174	240	285	24	6	22	M20	8	6,945
200	226	295	340	26	6	22	M20	12	9,383
250	281	355	405	29	8	26	M24	12	13,717
300	333	410	460	32	8	26	M24	12	18,213
350	365	470	520	35	8	26	M24	16	27,184
400	416	525	580	38	8	30	M27	16	34,789
450	467	585	640	42	8	30	M27	20	44,793
500	519	650	715	46	8	33	M30	20	62,227
600	622	770	840	55	8	36	M33	20	98,983
700	721	840	910	63	8	36	M33	24	107,32
800	824	950	1025	74	8	39	M36	24	152,44
900	926	1050	1125	82	8	39	M36	28	184,25
1000	1030	1170	1255	90	8	42	M39	28	257,09

Packaging of Pr EN 1092-1 PN16 Loose Flanges

Packaging: Pr EN 1092-1 PN16 Loose Flanges is sleeved into plastic bag individually, ten pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.

Prevent any damage.
During transportation items are tagged, packed in plastic bags and closed in carton boxes or seaworthy wooden cases.

plywood case,pallet and according to customer's requirment

Marking: Pr EN 1092-1 PN16 Loose Flanges are marked with alloy name, outside diameter, wall thickness and heat number. Additional information like standard and alloy numbers can be added on request.
