Hindustan Pipes & Fittings is a dynamic group, which was established over a decade ago to cater to growing demands of DIN 2633 PN16
Weld Neck Flanges standards in Weld Neck Flanges, Blind Flanges, Threaded Flanges, Loose or Lap Joint Flanges in all materials like Stainless Steel
, Carbon Steel & High Nickel Alloys. We Manufacture, Export and Supply Flanges which meets with national
and international quality standards and producing base which owns equipments conforming to international technical level
and is well equipped with a whole set of advanced plasma refining equipments.
We export our high quality DIN 2633 PN16 Weld Neck Flanges to Kuwait, Egypt and Qatar.
Size : DN10-DN2000
Standard: DIN2527
Type:Welding Neck Flange, WN Flange (Raised Face)
Process: Forged and Stamped
Pressure grade: PN
Germany standard flange DIN 2633 welding neck flanges; nominal pressure 16 |
||||||||||||||||
Brides à souder à collerette DIN 2633: pression nominale 16 |
||||||||||||||||

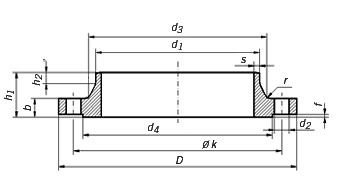

Pipe | Flange | Neck | Raised face | Screws | Weight | |||||||||||
(7,85 Kg/dm3) | ||||||||||||||||
Rated | d1 | D | b | k | h1 | d3 | s | r | h2 | d4 | f | Holes | Thread | d2 | Kg | |
Diameter | ISO Series | DIN Series | ||||||||||||||
15 | - | 20 | 95 | 14 | 65 | 35 | 30 | 2 | 4 | 6 | 45 | 2 | 4 | M 12 | 14 | 0,648 |
21,3 | - | 32 | ||||||||||||||
20 | - | 25 | 105 | 16 | 75 | 38 | 38 | 2,3 | 4 | 6 | 58 | 2 | 4 | M 12 | 14 | 0,952 |
26,9 | - | 40 | ||||||||||||||
25 | - | 30 | 115 | 16 | 85 | 38 | 42 | 2,6 | 4 | 6 | 68 | 2 | 4 | M 12 | 14 | 1,14 |
33,7 | - | 45 | ||||||||||||||
32 | - | 38 | 140 | 16 | 100 | 40 | 52 | 2,6 | 6 | 6 | 78 | 2 | 4 | M 16 | 18 | 1,69 |
42,4 | - | 56 | ||||||||||||||
40 | - | 44,5 | 150 | 16 | 110 | 42 | 60 | 2,6 | 6 | 7 | 88 | 3 | 4 | M 16 | 18 | 1,86 |
48,3 | - | 64 | ||||||||||||||
50 | - | 57 | 165 | 18 | 125 | 45 | 72 | 2,9 | 6 | 8 | 102 | 3 | 4 | M 16 | 18 | 2,53 |
60,3 | - | 75 | ||||||||||||||
65 | 76,1 | - | 185 | 18 | 145 | 45 | 90 | 2,9 | 6 | 10 | 122 | 3 | 4 | M 16 | 18 | 3,06 |
80 | 88,9 | - | 200 | 20 | 160 | 50 | 105 | 3,2 | 8 | 10 | 138 | 3 | 8 | M 16 | 18 | 3,7 |
100 | - | 108 | 220 | 20 | 180 | 52 | 125 | 3,6 | 8 | 12 | 158 | 3 | 8 | M 16 | 18 | 4,62 |
114,3 | - | 131 | ||||||||||||||
125 | - | 133 | 250 | 22 | 210 | 55 | 150 | 4 | 8 | 12 | 188 | 3 | 8 | M 16 | 18 | 6,3 |
139,7 | - | 156 | ||||||||||||||
150 | - | 159 | 285 | 22 | 240 | 55 | 175 | 4,5 | 10 | 12 | 212 | 3 | 8 | M 20 | 22 | 7,75 |
168,3 | - | 184 | ||||||||||||||
(175) | 193,7 | - | 315 | 24 | 270 | 60 | 210 | 5,4 | 10 | 12 | 242 | 3 | 8 | M 20 | 22 | 9,85 |
200 | 219,1 | - | 340 | 24 | 295 | 62 | 235 | 5,9 | 10 | 16 | 268 | 3 | 12 | M 20 | 22 | 11 |
250 | - | 267 | 405 | 26 | 355 | 70 | 285 | 6,3 | 12 | 16 | 320 | 3 | 12 | M 24 | 26 | 15,6 |
273 | - | 292 | ||||||||||||||
300 | 323,9 | - | 460 | 28 | 410 | 78 | 344 | 7,1 | 12 | 16 | 378 | 4 | 12 | M 24 | 26 | 22 |
350 | 355,6 | - | 520 | 30 | 470 | 82 | 390 | 8 | 12 | 16 | 438 | 4 | 16 | M 24 | 26 | 31,2 |
- | 368 | 28,8 | ||||||||||||||
400 | 406,4 | - | 580 | 32 | 525 | 85 | 445 | 8 | 12 | 16 | 490 | 4 | 16 | M 27 | 30 | 39,3 |
- | 419 | 36,3 | ||||||||||||||
(450) | 457 | - | 640 | 34 | 585 | 85 | 490 | 8 | 12 | 16 | 550 | 4 | 20 | M 27 | 30 | 44,3 |
500 | 508 | - | 715 | 34 | 650 | 90 | 548 | 8 | 12 | 16 | 610 | 4 | 20 | M 30 | 33 | 61 |
600 | 610 | - | 840 | 36 | 770 | 95 | 652 | 8,8 | 12 | 18 | 725 | 5 | 20 | M 33 | 36 | 75,4 |
700 | 711 | - | 910 | 36 | 840 | 100 | 755 | 8,8 | 12 | 18 | 795 | 5 | 24 | M 33 | 36 | 77 |
800 | 813 | - | 1025 | 38 | 950 | 105 | 855 | 10 | 12 | 20 | 900 | 5 | 24 | M 36 | 39 | 101 |
900 | 914 | - | 1125 | 40 | 1050 | 110 | 955 | 10 | 12 | 20 | 1000 | 5 | 28 | M 36 | 39 | 122 |
1000 | 1016 | - | 1255 | 42 | 1170 | 120 | 1058 | 10 | 16 | 22 | 1115 | 5 | 28 | M 39 | 42 | 162 |
Packaging: DIN 2633 PN16 Weld Neck Flanges is sleeved into plastic bag individually, ten pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.
Prevent any damage.
During transportation items are tagged, packed in plastic bags and closed in carton boxes or seaworthy wooden cases.
plywood case,pallet and according to customer's requirment
Marking: ASME B16.47 2633 PN16 Weld Neck Flanges are marked with alloy name, outside diameter, wall thickness and heat number. Additional information like standard and alloy numbers can be added on request.
Stainless Steel DIN
2633 PN16 Weld Neck Flanges
Carbon Steel DIN 2633
PN16 Weld Neck Flanges
Duplex & Super DIN 2633
PN16 Weld Neck Flanges
Nickel Alloy DIN
2633 PN16 Weld Neck Flanges
Inconel DIN 2633
PN16 Weld Neck Flanges
Incoloy DIN 2633
PN16 Weld Neck Flanges
Hastelloy DIN 2633
PN16 Weld Neck Flanges
Monel DIN 2633
PN16 Weld Neck Flanges
